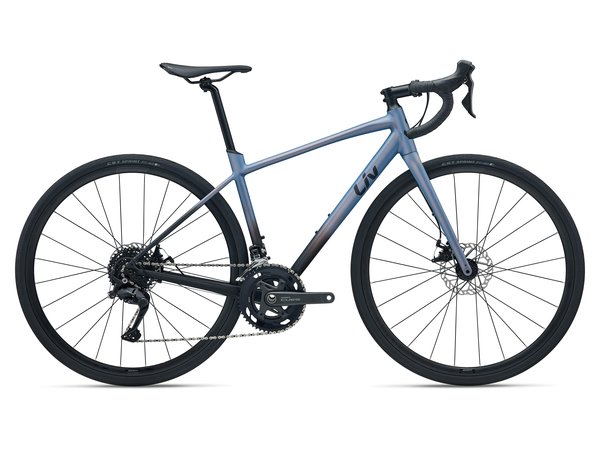

Avail Ar 3 Lunar Eclipse

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you’re ready for longer journeys with all the necessary gear and protection.

• Sizes:- XXS, XS, S, M, L
• Colours:- Lunar Eclipse
• Frame:- ALUXX-grade aluminum, 12x142mm thru-axle, disc
• Fork:- Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
• Shock:- N/A
• Handlebar:- Liv Connect, 31.8mm, XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
• Grips:- Liv All Condition
• Stem:- Giant Sport, XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
• Seatpost:- Giant D-Fuse, alloy, XXS: 300mm, XS: 300mm, S: 300mm, M: 350mm, L: 350mm
• Saddle:- Liv Approach
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- Shimano CUES U3030
• Front Derailleur:- Shimano CUES U3030F
• Rear Derailleur:- Shimano CUES U4020
• Brakes:- Tektro MD-C550 mechanical, Giant MPH rotors, [F]160mm, [R]160mm
• Brake Levers:- Shimano CUES U3030
• Cassette:- Shimano CS-LG300, 9-speed, 11×36
• Chain:- KMC X11
• Crankset:- Shimano FC-U6030-2, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
• Bottom Bracket:- Shimano BB-RS501
• Rims:- Giant S-R2 Disc
• Hubs:- Giant alloy, 12mm thru-axle
• Spokes:- stainless
• Tyres:- CST Sprint, 700x33c
• Extras:- 38mm max tire size
• Max Tyre Clearance:- 38mm
