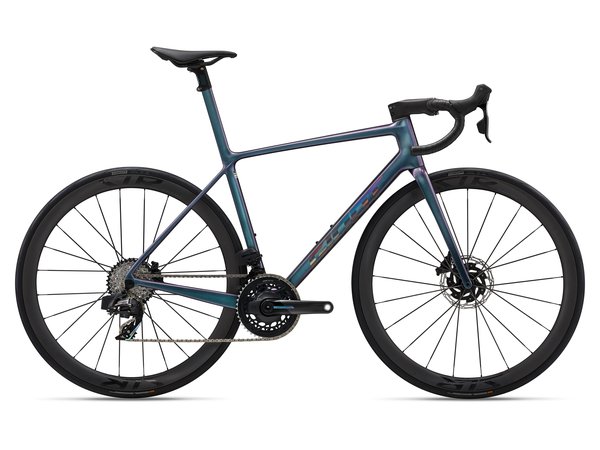

Tcr Advanced Sl 1 Axs Blue Dragonfly

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.

SYSTEM OPTIMISATION
The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

• Sizes:- S, M, ML, L
• Colours:- Gloss Blue Dragonfly/Laser Foil
• Frame:- Advanced SL-Grade Composite, 12x142mm thru-axle, Integrated Seatpost, Disc
• Fork:- Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
• Handlebar:- Giant Contact SLR, 10.5 degree flare
• Grips:- Giant Stratus Lite 2.0 with gel
• Stem:- Giant Contact SLR Aerolight
• Seatpost:- Advanced SL-Grade Composite, Integrated Design, ISP Clamps: Standard (25mm) and Long version (45mm) Offset -5/+15mm
• Saddle:- Giant Fleet SLR 9mm Carbon Rail With Giant ParticleFlow technology
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- SRAM Force AXS 2×12
• Front Derailleur:- SRAM Force AXS
• Rear Derailleur:- SRAM Force AXS
• Brakes:- SRAM Force AXS HRD, Centreline XR 160/140mm rotors
• Brake Levers:- SRAM Force AXS HRD
• Cassette:- SRAM Force, XG-1270, 10X36
• Chain:- SRAM Force
• Crankset:- SRAM Force DUB 33/46 with Quarq power meter
• Bottom Bracket:- SRAM DUB, Press Fit
• Rims:- New Giant SLR 0 40 Carbon Disc Wheel System with GIANT patented DBL (Dynamic Balanced Lacing) technology
• Hubs:- [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
• Spokes:- Giant Aero Carbon Spoke
• Tyres:- New CADEX Race GC Tubeless 700x28mm effecitve 170 TPI, Folding
• Extras:- Factory tubeless set up, out front computer mount, 33mm max tyre size
