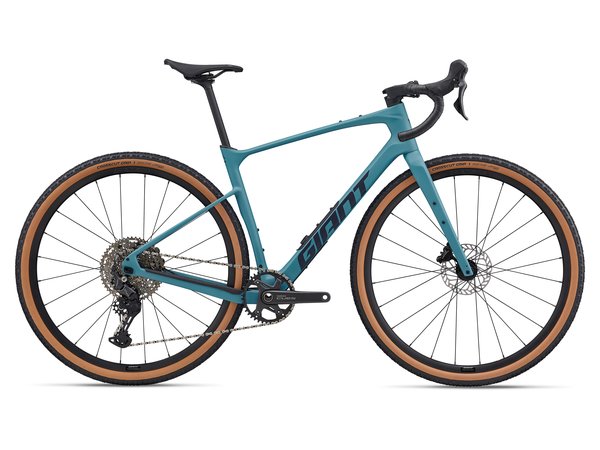

Revolt Advanced 3 Aquarium

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

• Sizes:- XS, S, M, M/L, L, XL
• Colours:- Aquarium
• Frame:- Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork:- Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar:- Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips:- Stratus Lite 3.0
• Stem:- Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost:- Giant D-Fuse, composite, 14mm offset
• Saddle:- Giant Grit
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- Shimano CUES U6030, 1×11
• Front Derailleur:- N/A
• Rear Derailleur:- Shimano CUES U6000
• Brakes:- Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers:- Shimano CUES U6030 hydraulic
• Cassette:- Shimano CS-LG400, 11×50
• Chain:- KMC X11
• Crankset:- Shimano FC-U6030-1, 42t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket:- Shimano, press fit
• Rims:- Giant P-X2 , alloy
• Hubs:- Giant alloy, 12mm thru-axle
• Spokes:- Sapim
• Tyres:- Giant Crosscut Grip, 700x45c, tubeless
• Extras:- Tubeless prepared, in-frame storage bag
• Max Tyre Clearance:- 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
