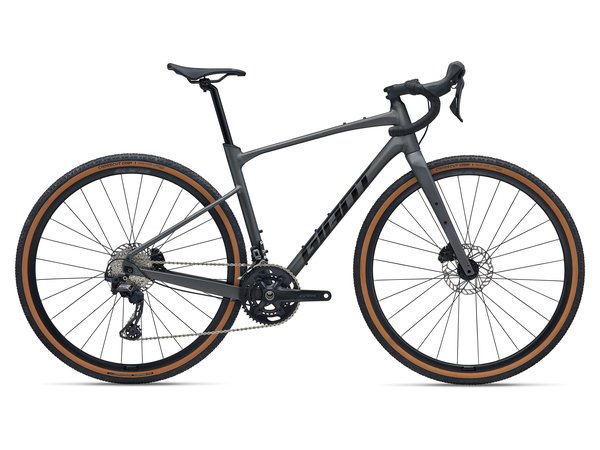

Revolt 0 Stealth Chrome

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

• Sizes:- XS, S, M, M/L, L, XL
• Colours:- Stealth / Chrome
• Frame:- ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
• Fork:- Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar:- Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips:- cork tape with gel
• Stem:- Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost:- Giant D-Fuse, alloy, 14mm offset
• Saddle:- Giant Grit
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- Shimano GRX RX-610, 2×12
• Front Derailleur:- Shimano GRX RX-820
• Rear Derailleur:- Shimano GRX RX-820
• Brakes:- Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers:- Shimano GRX RX-610 hydraulic
• Cassette:- Shimano 105, 11×34
• Chain:- KMC X12L-1
• Crankset:- Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket:- Shimano, threaded
• Rims:- Giant S-X2 , alloy
• Hubs:- Giant alloy, 12mm thru-axle
• Spokes:- stainless
• Tyres:- Giant Crosscut Grip TR, 700x40c, tubeless
• Extras:- tubeless prepared
• Max Tyre Clearance:- 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
