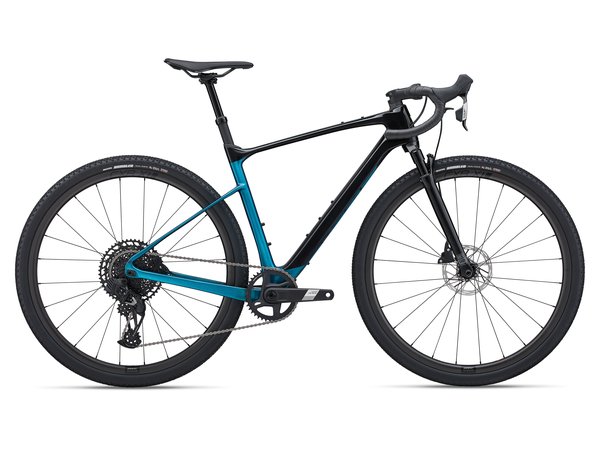

Revolt X Advanced Pro 2 Black / Sea Sparkle

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.

Smooth control
Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Tuned compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included dropper/suspension seatpost for added

• Sizes:- S, M, M/L, L, XL
• Colours:- Gloss Black/Sea Sparkle
• Frame:- Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork:- RockShox Rudy XPLR, 40mm, cartridge damper12x100mm thru-axle
• Shock:- N/A
• Handlebar:- Giant Contact SL XR D-Fuse, 31.8mm S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
• Grips:- Stratus Lite 3.0
• Stem:- Giant Contact, 8-degree S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
• Seatpost:- Post Moderne, dropper, 30.9mm with 30mm of suspension S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
• Saddle:- Giant Approach SL
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- Sram Apex AXS 1X12
• Front Derailleur:- N/A
• Rear Derailleur:- Sram X1 AXS Eagle w/ battery protector 1X12
• Brakes:- SRAM hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers:- SRAM Apex AXS hydraulic, left lever dropper switch
• Cassette:- SRAM PG-1230, 12-speed, 11×50
• Chain:- SRAM CN-EAGL-NX-A1, 12-speed
• Crankset:- SRAM Apex D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket:- SRAM DUB, press fit
• Rims:- Giant CXR X1 WheelSystem, [F] 25.8mm, [R] 25.8mm
• Hubs:- [F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
• Spokes:- Sapim Laser
• Tyres:- Maxxis Rambler, 700x45c, tubeless prepared
• Extras:- Factory tubeless set up, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
• Max Tire Clearance:- 700x53mm at long RC
• Max Chainring Size:- SRAM Wide 1x 44T. Shimano GRX 1x 42T
