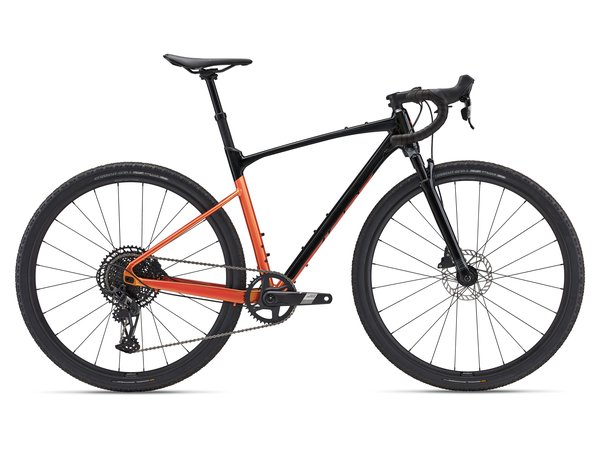

Revolt X 1 Panther / Heliosorange

Unlock new terrain with this progressive gravel bike featuring front suspension. The lightweight aluminium frame has suspension-optimised geometry and a flip chip that lets you adjust wheelbase and tyre clearance for any adventure.

Smooth control
Lightweight aluminium frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Tuned compliance
Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can use the included suspension/dropper seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.

• Sizes:- S, M, M/L, L, XL
• Colours:- Gloss Panther/Helios Orange
• Frame:- ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
• Fork:- RockShox Rudy XPLR, 40mm, cartridge damper12x100mm thru-axle
• Shock:- N/A
• Handlebar:- Giant Contact SL XR D-Fuse, 31.8mm S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
• Grips:- cork tape with gel
• Stem:- Giant Contact, 8-degree S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
• Seatpost:- Post Moderne suspension dropper, 30.9mm with 30mm of suspension S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
• Saddle:- Giant Approach
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- SRAM Apex, 1×12
• Front Derailleur:- N/A
• Rear Derailleur:- Sram X1 Eagle 1X12
• Brakes:- SRAM hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers:- Sram Apex 1X12 HRD (hydraulic road disc), left lever dropper switch
• Cassette:- SRAM PG-1210, 12-speed, 11×50
• Chain:- SRAM CN-EAGL-NX-A1, 12-speed
• Crankset:- SRAM Apex 1 Wide, DUB 1X 40T S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket:- SRAM DUB, press fit
• Rims:- Giant P-X2 EVO Disc wheelset
• Hubs:- Alloy
• Spokes:- Stainless
• Tyres:- Crosscut GRIP 700x45c, tubeless prepared
• Extras:- tubeless prepared
• Max Tyre Clearance:- 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
• Max Chainring Size:- SRAM Wide 2x 43-30, 1x 46T. Shimano GRX 2x 48-31, 1x 42T
