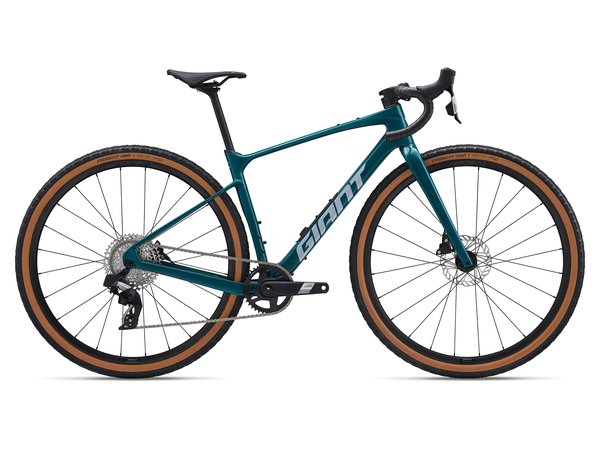

Revolt Advanced 1 Abyss Teal

• Sizes:- S, M, M/L, L, XL
• Colours:- Gloss Abyss Teal
• Frame:- Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork:- Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Handlebar:- Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips:- Stratus Lite 3.0
• Stem:- Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost:- Giant D-Fuse, composite, 14mm offset
• Saddle:- Giant Grit
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- SRAM AXS Apex, 1×12
• Rear Derailleur:- SRAM Apex XPLR
• Brakes:- SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers:- SRAM Apex D1, left lever dropper switch
• Cassette:- SRAM PG-1231, 12-speed, 11×44
• Chain:- SRAM Apex D1
• Crankset:- SRAM Apex 1 Wide DUB, 38t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket:- SRAM DUB, press fit
• Rims:- Giant P-X2 , alloy
• Hubs:- Giant alloy, 12mm thru-axle
• Spokes:- Sapim
• Tyres:- Giant Crosscut Grip 1, 700x45c, tubeless
• Extras:- tubeless prepared, in-frame storage bag
• Max Tyre Clearance:- 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
