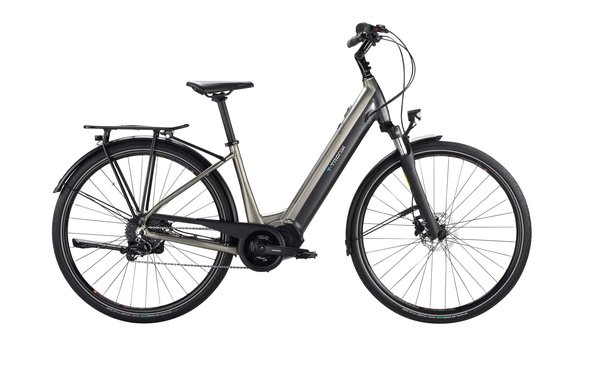

BIANCHI T-TRONIK C-TYPE OYSTER ASH

Motor Unit

1. Motor

   Shimano E6100 250W, torque 60Nm

2. Battery

   417Wh Phylion integrated battery

• Frameset

  1. Frame

     T-Tronik C-Type Frame 28″ Urban, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 43/47

  2. Fork

     Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8″”, travel 63mm, compatible with fender, OLD 100mm, Quick relase type

  3. Headset

     FSA 1.1/8″ 44H-N10P

• Drivetrain

  1. Shifters

     Sunrace DLE903N, 9sp, w/ optical gear

  2. Rear Derailleur

     Sunrace, 9sp, max 42T

  3. Crankset

     FSA SMN E-Bike Forged Crankset, 170mm CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM

  4. BB

     included in the motor

  5. Chain

     KMC E9s EPT

• Brakes

  1. Brakes

     Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter

  2. Rotor

     Radius Rotors RT900, 160mm, center lock

• Wheels

  1. Rims

     Velomann 29″, 23-622, 32 hole black

  2. Tire

     Chaoyang E-Liner City 700x45C, 60tpi

• Cockpit

  1. Stem

     Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore

  2. Handlebar

     Velomann 31.8/680mm, RISE 20MM, SWEEP 15°

  3. Grips

     Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm

• Saddle

  1. Seatpost

     Velomann, lenght 350mm, diam. 31,6mm, 0mm seatback, Al2014 shaft + alloy head

  2. Saddle

     Selle Royal, Essenza

• Accessories

  1. Pedals

     VP black aluminum, w/reflector

  2. Mudguards

     SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard

  3. Kickstand

     Ursus R81 WAVE REAR, 28″ – 40mm fixing plate (load 35kg)

  4. RearCarrier

     Racktime, RT Eco 2.0, 28″, black w/ roundstay 350mm

  5. FrontLight

     Herrmans Mr GO

  6. RearLight

     Axa Juno
