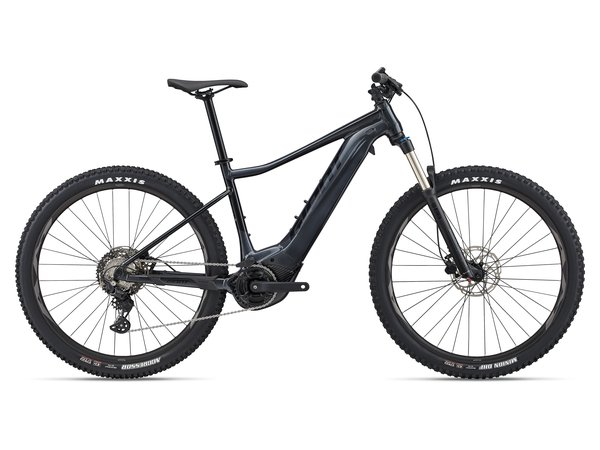

Ride rough roads, paths or singletrack with power and control. This trail-friendly hardtail E-bike helps you conquer hills and challenging terrain in a whole new way.
Integrated design
625Wh EnergyPak is integrated into the downtube. The RideControl ONE handlebar has EVO display compatibility and control buttons that connect with an E-bike-specific App for health, fitness and navigation functions.
Total control
SyncDrive Pro motor technology gives you 360 percent tunable power so you can adjust your E-bike to ride just the way you like.
Balanced, confident handling
Lightweight, durable aluminum frame is specially designed for 29-inch wheels and a 130mm suspension fork for smooth off-road control.
- Motor:- SyncDrive Pro, 80Nm, powered by Yamaha
- Controller:- RideControl Dash, full color LCD screen
- Display:- RideControl Dash, full color LCD screen
- Battery:- EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
- Charger:- EnergyPak 4A smart charger compact
- Sizes:- S, M, L, XL
- Colours:- Gunmetal Black
- Frame:- ALUXX Aluminum, Overdrive 1½ – 1⅛” head tube, 148x12mm Thru-Axle, integrated KS18 kickstand mount
- Fork:- SR Suntour XCR 34 Boost Air LOR, 130mm travel, Tapered 1½ – 1⅛” steerer, lockout
- Shock:- –
- Handlebar:- Giant Connect TR Riser 31.8x780mm
- Grips:- Giant Tactal Lock-On
- Stem:- Giant Contact
- Seatpost:- Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
- Saddle:- Giant Sport
- Pedals:- Aluminum Platform
- Shifters:- Shimano Deore LinkGlide
- Front Derailleur:- –
- Rear Derailleur:- Shimano Deore, 10-speed, LinkGlide, Shadow+
- Brakes:- Tektro HD-M275, hydraulic disc, 180mm [F/R]
- Brake Levers:- Tektro HD-M275
- Cassette:- Shimano Deore LinkGlide CS-M5130-10, 11-43T, 10-speed
- Chain:- Shimano, CN-LG500, 9/10/11speed for LinkGlide
- Crankset:- Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
- Bottom Bracket:- –
- Rims:- Giant AM 29″, Tubeless ready, 30mm inner width
- Hubs:- Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
- Spokes:- Stainless steel
- Tyres:- Maxxis Minion DHF 29X2.5″ 60TPI Foldable, TLR EXO [F] Maxxis Aggressor 29X2.5″ 60TPI Foldable TLR EXO [R]
- Lighting:- –
